28A double-knife ring type self-locking with lamp Featured Image
  • 28A double-knife ring type self-locking with lamp

28A double-knife ring type self-locking with lamp

Short Description:

·Product Model:  Q28A

·Type:Double pole,Self-locking

·Material:304 stainless steel housing，PA66

·Protection level: IP65, IK10, IP40.

·Electrical parameters: 5A /250VAC

·Insulation resistance:≥ 1000MΩ

·LED voltage: 3V-220V

·Service temperature range: -20℃—55℃

·Lamp bead life:40,000 hours

·Mechanical life:30 times/min，500,000 times

·Contact resistance:≤50Ω


  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics

    1. Security guarantee
    2. Stainless steel shell anticorrosive and dustproof
    3. Use flame-retardant materials
    4. Contains PC button, silicone waterproof ring
    5. High performance, solid and reliable.

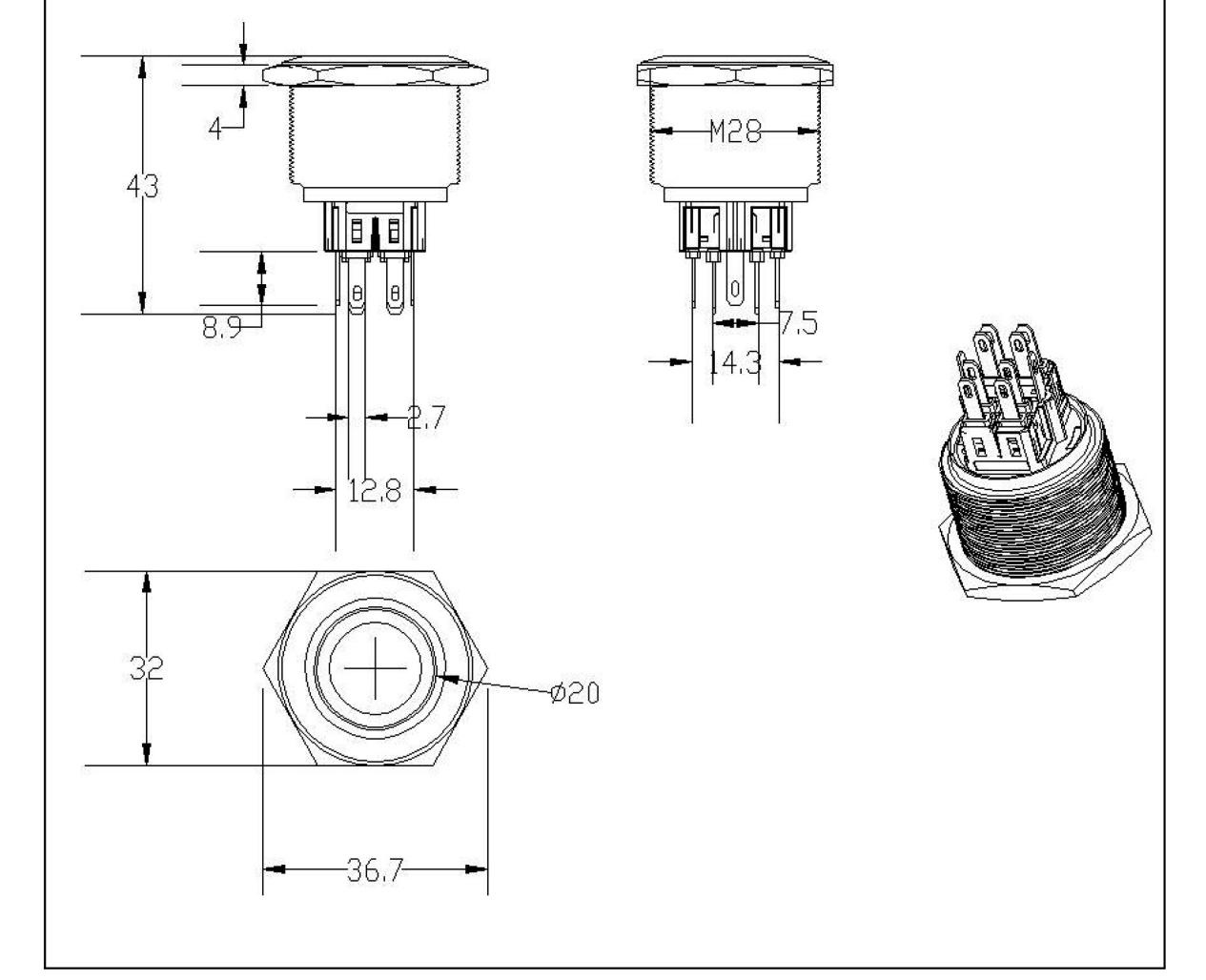

    Product Drawing

    asd
    sd

    Application Areas

    The product can be used in:
    Transportation, starter, bathroom, household appliances, medical equipment, access control, etc.

    Package picture

    sad
    asd
